EuroStage ES-3322 Hydraulic Mobile Stage
Now Shipping to the USA!

5 STAGE MODELS: ES-3322 | ES-2620 | ES-2016 | EZ-20 | EZ-16




ES-3322 QUICK SPECS

   • Aprox. 22+ Stage Decks = 705 sq/ft
   • Roof Size: 33'-1" x 23'-6"
   • Deck Size: 32'- 9" x 21'-6"
   • Deck to Truss: 17' to 16'-3"
   • Deck Height: 3.5' - 5'
   • GVW: 7,490 lbs. / GVWR: 8,000 lbs.

   • Truss Capacity: (4) 1,000-2,000 lbs. ea. UDL
   • 8.5' Fly Bay Capacity: 1,200 CP-UDL
   • Roof Capacity: 6,800-7,800 lbs. UDLxUDL
   • Lifting Capacity: 2,000 lbs. UDLxUDL
   • Top Banner: 50' x 4'
   • Side Banners: 8' x 18'

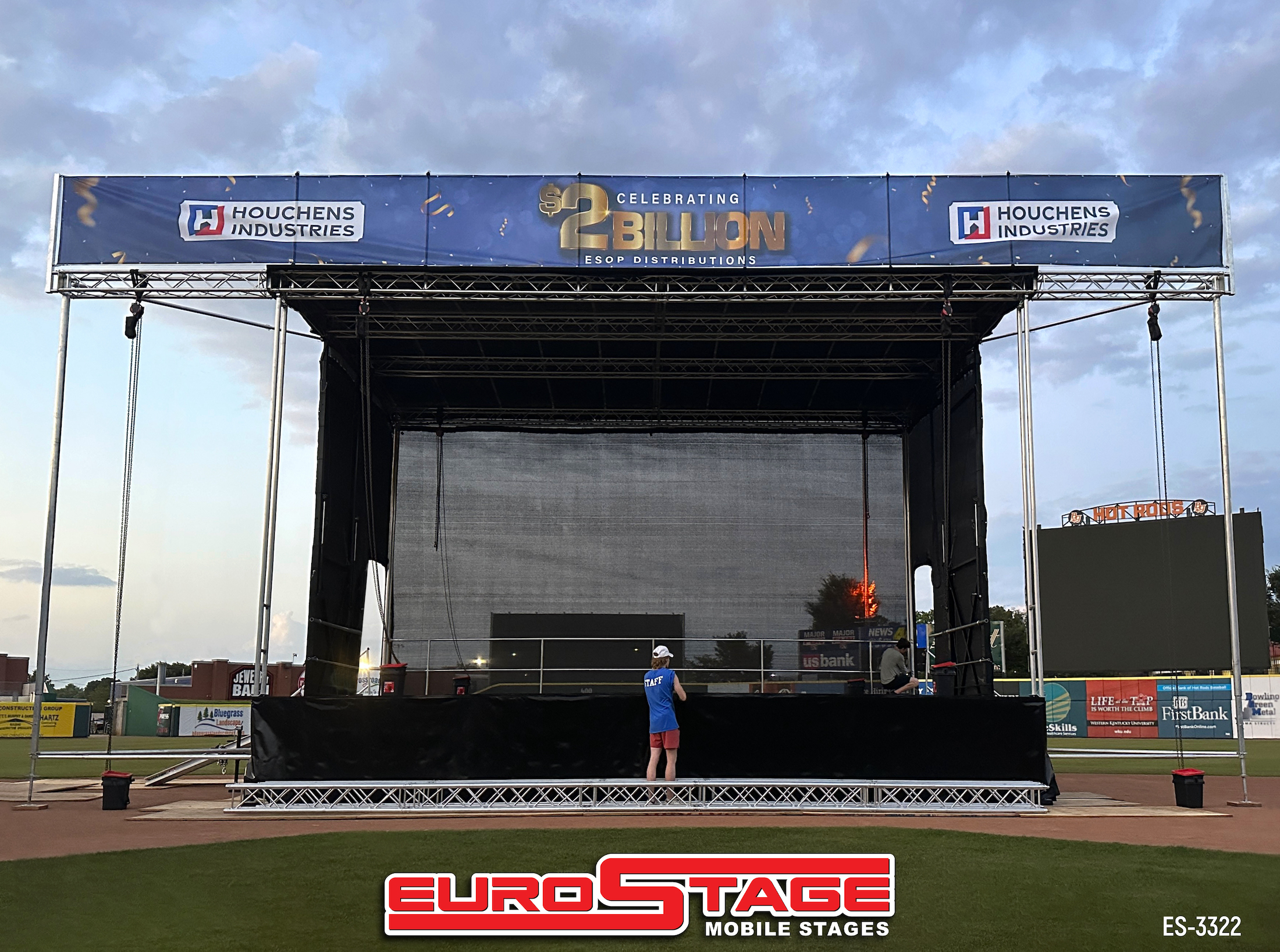

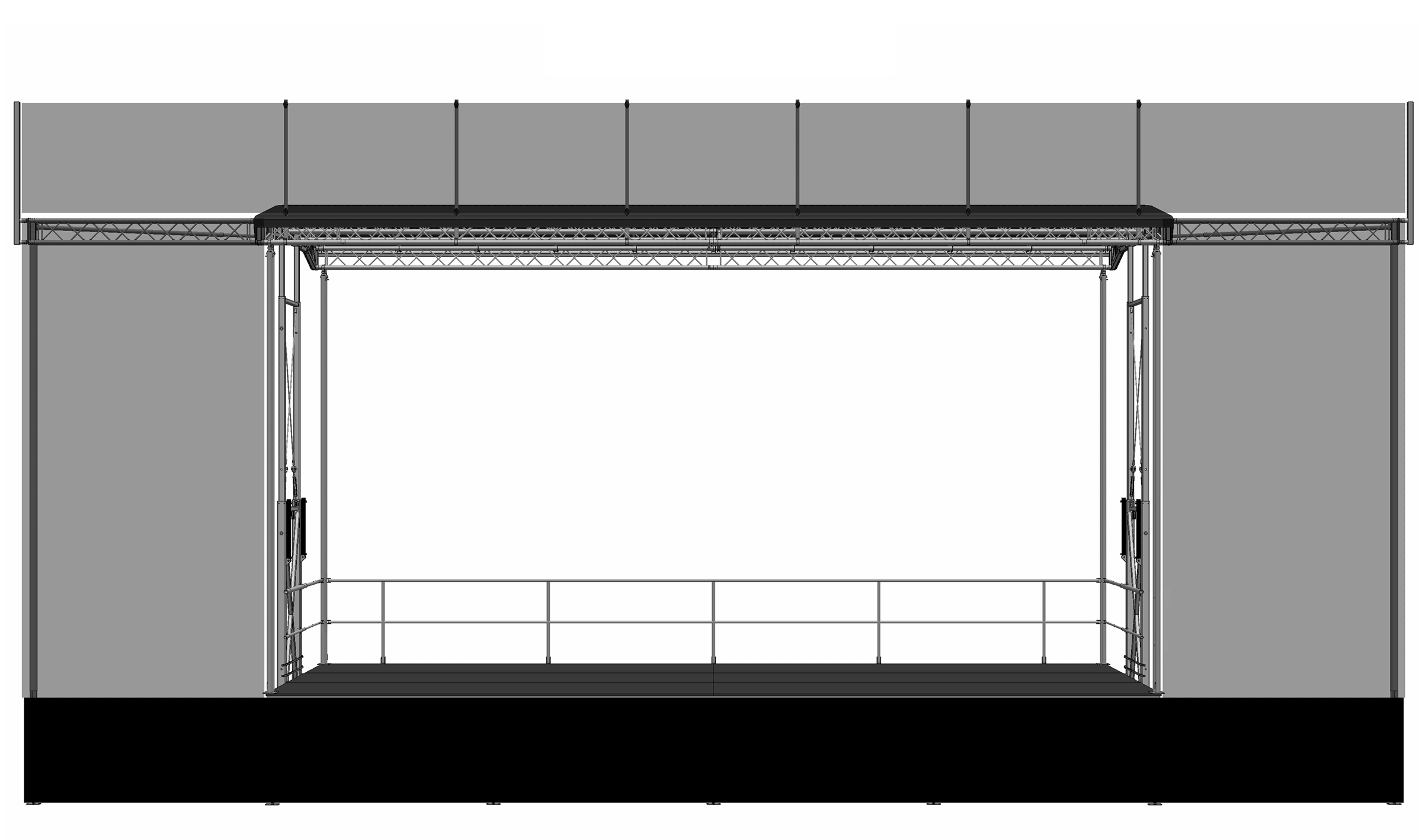

EuroStage ES-3322 Mobile Stage

Designed, Engineered, and Made in Europe and the USA
Design and Safety Certifications by Clark Reder Engineering USA




QUOTE FORM

Fill out this quote form with your
NAME, BUSINESS NAME, LOCATION, and PHONE NUMBER.

Our USA office will send you info and limited time special pricing.




ES-3322 Specs & Technical Information

View all of ur PDF files with full specs, technical drawings,
Clark Reder Certifications, High Wind Action Plan (HWAP), and Rigging Specs.

SPECS / CERTS / RIGGING
   • PDF: ES-3322 BROCHURE, SPECS, DRAWINGS
   • PDF: ES-3322 CERTIFICATIONS, STAMPS, HWAP
   • PDF: ES-3322 RIGGING CAPACITIES
   • PDF: ES-3322/2620/2016 BANNER SPECS
   • PDF: ES MATERIALS: Roof, Floor, Axels, Tires
   • PDF: ES STAIRS: SPECS & DRAWINGS


ES Series Time-Lapse Set Up Videos

(1 Person Crew: 15 mins)






(2 Person Crew with Fly Bay/Sound Wings and Banner Kit: 10-14 mins)
