EuroStage ES-2620 Hydraulic Mobile Stage
Now Shipping to the USA!

5 STAGE MODELS: ES-3322ES-2620 | ES-2016 | EZ-20 | EZ-16




ES-2620 QUICK SPECS

   • Aprox. 16+ Stage Decks = 518 sq/ft
   • Roof Size: 26'- 10" x 21'- 11"
   • Deck Size: 26'- 3" x 19'- 9"
   • Deck to Truss: (4) 13'- 3"
   • Deck Height: 3.5' - 4.5'

   • Truss Capacity: (4) 825-2,000 lbs. UDL
   • Fly Bay Capacity: 750-1,000 lbs. CP-UDL
   • Roof Capacity: 4,800+ lbs. UDLxUDL
   • Lifting Capacity: 2,000 lbs. UDLxUDL
   • GVW: 5,375 lbs. / GVWR: 6,000 lbs.

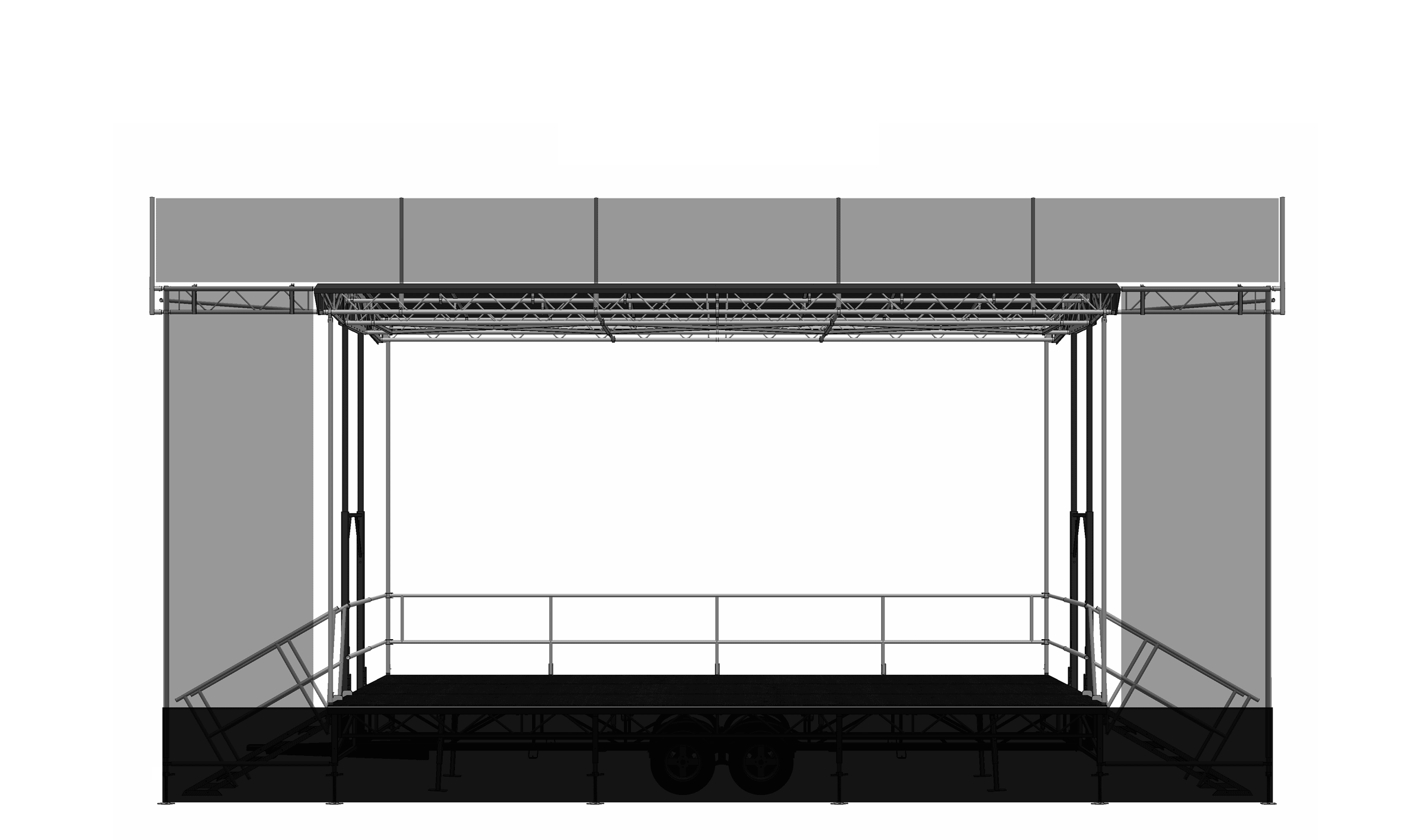

EuroStage ES-2620 Mobile Stage

Designed, Engineered, and Made in Europe and the USA
Design and Safety Certifications by Clark Reder Engineering USA



QUOTE FORM

Fill out this quote form with your
NAME, BUSINESS NAME, LOCATION, and PHONE NUMBER.

Our USA office will send you info and limited time special pricing.





ES-2620 Specs & Technical Information

View our 5 page PDF brochure with full specs & technical drawings.
Clark Reder Certifications & High Wind Action Plan (HWAP).  Rigging Specs.

SPECS / CERTS / RIGGING
   • PDF: ES-2620 BROCHURE, SPECS, DRAWINGS
   • PDF: ES-2620 CERTIFICATIONS, STAMPS, HWAP
   • PDF: ES-2620 RIGGING CAPACITIES
   • PDF: ES-3322/2620/2016 BANNER SPECS
   • PDF: QUICK SET UP GUIDE
   • PDF: ES MATERIALS: Roof, Floor, Axels, Tires
   • PDF: ES STAIRS: SPECS & DRAWINGS


ES-2620 Time-Lapse Set Up Videos

(1 Person Crew: 15 mins - stage only)





(2 Person Crew with Fly Bay/Sound Wings and Banner Kit: 10-14 mins)
