EuroStage ES-2016 Hydraulic Mobile Stage
Now Shipping to the USA!

5 STAGE MODELS: ES-3322 | ES-2620 | ES-2016 | EZ-20 | EZ-16




ES-2016 QUICK SPECS

   • Aprox. 10+ Stage Decks = 322 sq/ft
   • Roof Size: 20'- 6" x 18'- 9"
   • Deck Size: 19'- 6" x 16'- 6"
   • Deck to Truss: (4) 12'- 3"
   • Deck Height: 3.5' - 4.5'

   • Truss Capacity: (4) 825-2,000 lbs. UDL
   • Fly Bay Capacity: 750-1,000 lbs. CP-UDL
   • Roof Capacity: 4,800+ lbs. UDLxUDL
   • Lifting Capacity: 2,000 lbs. UDLxUDL
   • GVW: 4,375 lbs. / GVWR 5,500 lbs.

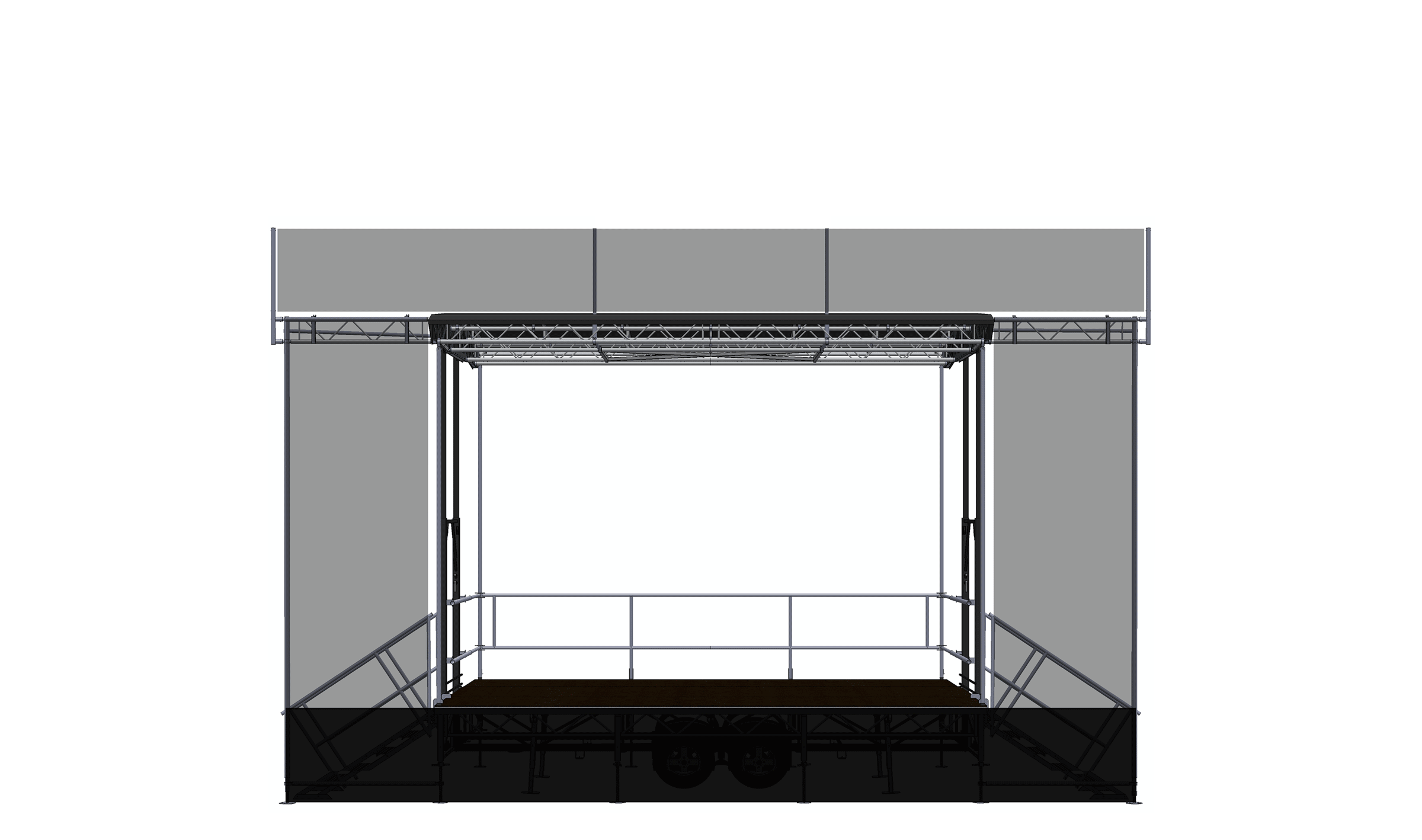

EuroStage ES-2016 Mobile Stage

Designed, Engineered, and Made in Europe and the USA
Design and Safety Certifications by Clark Reder Engineering USA



QUOTE FORM

Fill out this quote form with your
NAME, BUSINESS NAME, LOCATION, and PHONE NUMBER.

Our USA office will send you info and limited time special pricing.





ES-2016 Specs & Technical Information

View our 4 page PDF brochure with full specs & technical drawings.
Clark Reder Certifications & High Wind Action Plan (HWAP).  Rigging Specs.

SPECS / CERTS / RIGGING
   • PDF: ES-2016 BROCHURE, SPECS & DRAWINGS
   • PDF: ES-2016 CERTIFICATIONS, STAMPS, HWAP
   • PDF: ES-2016 RIGGING CAPACITIES
   • PDF: ES-3322/2620/2016 BANNER SPECS
   • PDF: QUICK SET UP GUIDE
   • PDF: ES MATERIALS: Roof, Floor, Axels, Tires
   • PDF: ES STAIRS: SPECS & DRAWINGS


ES-2016 Time-Lapse Set Up Video

(10-15 mins setup time)
